SEN CV Indoor

Accessories / Options | Downloads |

SEN CV Indoor 035

Interior

hcv-line

L70 B10>50000h

ULlistingUS 356145

LM80

24V DC

67.2W/m

≤53.1lm/W

IP40

50,000hrs

24V DC

20.48W/ft

≤53.1lm/W

IP40

50,000hrs

Product Details

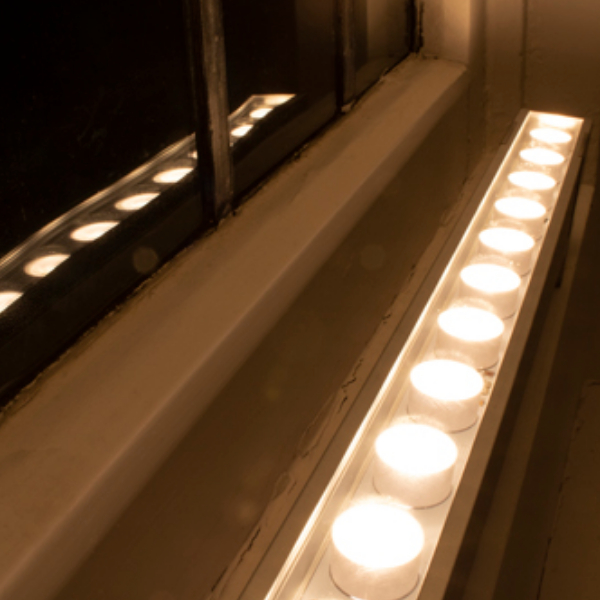

Reduced cost IP40 Indoor High Power fixture for interior applications

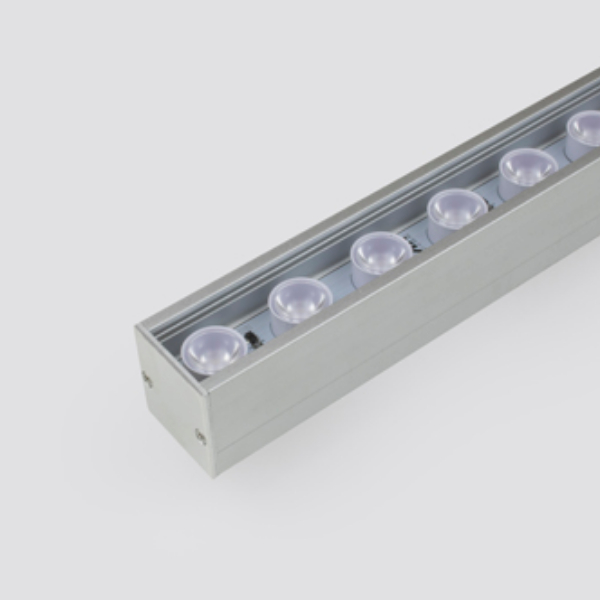

Constant Voltage SEN CV 035, with 35mm pitched lensed LED array
Various lengths, lens & mounting accessories available
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, (90CRI for 2700K, 3000K)

Unit: Metric Imperial

Product Data

Lumen/mLumen/ft

Lumen/W

Lifetime/hrs

Clear cover 10°

h-line

3570

1088

53.1

50,000

Clear cover 20°

h-line

3540

1080

52.7

50,000

Clear cover 30°

h-line

3220

980

48.9

50,000

Clear cover + spread lens

h-line

3470

1057

51.6

50,000

Clear cover no lens

h-line

2860

873

42.6

50,000

Clear glass + micro louvre

h-line

-60% Output when combined with Cover and Lens options

All data based on 3000K

Accessories / Options

Downloads

KKBK-02 (SEN CV Indoor)

Fixed bracket
Allow 2 per metre
Steel finish
L40/W39.2/H68.8mm

Fixed bracket
Allow 2 per 40"
Steel finish
L1.58/W1.54/H2.71"

KKBK-09 (SEN CV Indoor)

Mounting plate
Allow 2 per metre – factory fitted
Silver anodised aluminium finish
L50/W39.2/H52.3mm

Mounting plate
Allow 2 per 40" – factory fitted
Silver anodised aluminium finish
L1.97/W1.54/H2.06"

KKBK-16 (SEN CV Indoor)

Small adjustable bracket
Allow 2 per metre
Silver anodised aluminium finish
L46/W70/H79.1mm

Small adjustable bracket
Allow 2 per 40"
Silver anodised aluminium finish
L1.8/W2.76/H3.11"

KKBK-17 (SEN CV Indoor)

Large adjustable bracket
Allow 2 per metre
Silver anodised aluminium finish
L46/W70/H129.4mm

Large adjustable bracket
Allow 2 per 40"
Silver anodised aluminium finish
L1.8/W2.76/H5.09"

KKBK-23 (SEN CV Indoor)

Low adjustable bracket
Allow 2 per metre
Silver anodised aluminium finish
L34/W39/H58.1mm

Low adjustable bracket
Allow 2 per 40"
Silver anodised aluminium finish
L1.34/W1.54/H2.29"

KKCP-12 (SEN CV Indoor)

Lock clip
Allow 2 per metre
Stainless steel finish
L38/W40.5/H70mm

Lock clip
Allow 2 per 40"
Stainless steel finish
L1.50/W1.59/H2.76"

RC-Rear cable exit
(SEN CV Indoor)

Not compatible with low profile bracket (KKBK-23) or mounting plate (KKBK-09)

Not compatible with low profile bracket (KKBK-23) or mounting plate (KKBK-09)

SC-Side cable exit
(SEN CV Indoor)

Required for use of low adjustable bracket (KKBK-23)

Required for use of low adjustable bracket (KKBK-23)

Spec SEN CV 035 Indoor Install SEN CV 035 Indoor CE Certificate SEN CV 035 Indoor

CAD SEN CV 035 Indoor BIM SEN CV 035 Indoor IES SEN CV 035 Indoor LDT SEN CV 035 Indoor
