SEN Louvre CV

Accessories / Options | Downloads |

SEN Louvre CV 035

Interior

Exterior

hcv-line

L70 B10>50000h

ULlistingUS 356145

C-tick

Class III

RoHS

WEEE

LM79

LM80

24V DC

67.2W/m

≤53.1lm/W

IP54 / IP67

50,000hrs

24V DC

20.48W/ft

≤53.1lm/W

IP54 / IP67

50,000hrs

Product Details

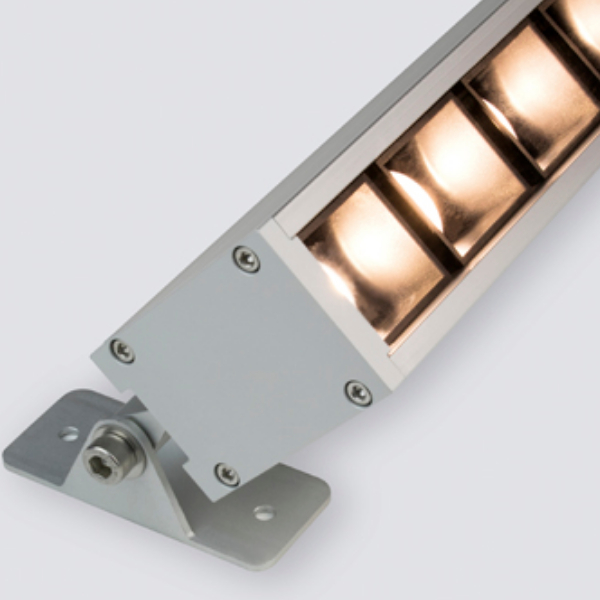

Powerful linear illumination with effective glare control for exterior & interior applications
Constant Voltage 35mm pitch, high performance, Power lensed LED Array
Black integral louvres in a deep anodised aluminium housing
Various lengths, lens and mounting options available
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, (90CRI for 2700K/3000K)

Unit: Metric Imperial

Product Data

Lumen/mLumen/ft

Lumen/W

Lifetime/hrs

Clear cover 10°

h-line

2830

865

42.1

50,000

Clear cover 20°

h-line

2770

845

41.2

50,000

Clear cover 30°

h-line

2760

840

41.0

50,000

All data based on 3000K

Accessories / Options

Downloads

KKBK-02 (SEN Louvre CV)

Fixed bracket
Allow 2 per metre
Steel finish
W39.2/H87.1mm

Fixed bracket
Allow 2 per 40"
Steel finish
W1.54/H3.43"

KKBK-09 (SEN Louvre CV)

Mounting plate
Allow 2 per metre – factory fitted
Silver anodised aluminium finish
W39.2/H70.6mm

Mounting plate
Allow 2 per 40" – factory fitted
Silver anodised aluminium finish
W1.54/H2.78"

KKBK-16 (SEN Louvre CV)

Small adjustable bracket
Allow 2 per metre
Silver anodised aluminium finish
W70/H97.4mm

Small adjustable bracket
Allow 2 per 40"
Silver anodised aluminium finish
W2.76/H3.83"

KKBK-17 (SEN Louvre CV)

Large adjustable bracket
Allow 2 per metre
Silver anodised aluminium finish
W70/H147.7mm

Large adjustable bracket
Allow 2 per 40"
Silver anodised aluminium finish
W2.76/H5.81"

KKBK-23 (SEN Louvre CV)

Low adjustable bracket
Allow 2 per metre
Silver anodised aluminium finish
L34/W39.2/H76.4mm

Low adjustable bracket
Allow 2 per metre/40"
Silver anodised aluminium finish
L1.34/W1.54/H3.00"

KKSW-05 (SEN Louvre CV)

Quick release suspension wire kit
W16/H17mm

Quick release suspension wire kit
W0.63/H0.67"

RC-Rear cable exit
(SEN Louvre CV)

Not compatible with low profile bracket (KKBK-23) or mounting plate (KKBK-09)
H75.2mm

Not compatible with low profile bracket (KKBK-23) or mounting plate (KKBK-09)
H2.96"

SC-Side cable exit
(SEN Louvre CV)

Required for use of low adjustable bracket (KKBK-23)
W56.4mm

Required for use of low adjustable bracket (KKBK-23)
W2.22"

Spec SEN Louvre CV 035 Install SEN Louvre CV 035 CE Certificate SEN Louvre CV 035

CAD SEN Louvre CV 035 BIM SEN Louvre CV 035 IES SEN Louvre CV 035 LDT SEN Louvre CV 035

Batch Download (.ZIP file)
