LINI-R XL

Accessories / Options    |    Downloads    |    Videos
LINI-R XL Projects

Select LED:

Unit: Metric Imperial
R007
7W/m2.13W/ft
≤256lm/m (37.8lm/W)≤81lm/ft (37.8lm/W)
Homogeneouss-linek-line
R014
14W/m4.27W/ft
≤534lm/m (38.2lm/W)≤163lm/ft (38.2lm/W)
Homogeneouss-linek-line
R020
20W/m6.10W/ft
≤731lm/m (36.6lm/W)≤223lm/ft (36.6lm/W)
Homogeneouss-linek-line
A040
40W/m12.19W/ft
≤2000lm/m (50lm/W)≤610lm/ft (50lm/W)
HomogeneousA-line
R207
16W/m4.88W/ft
Tunable whiteTunable white
Homogeneouss-linek-lineLEDmix
New
RGBW
20W/m6.10W/ft
Dynamic colour changeDynamic colour change
Homogeneouss-linek-lineRGBW
RGB
15.6W/m4.75W/ft
Colour changeColour change
HomogeneousRGB

LINI-R XL R007

InteriorHomogeneouss-linek-lineULlistingUS PendingCERoHSLM79LM80TM-30 Results
24V DC
7W/m
≤37.8lm/W
IP40
50,000hrs
24V DC
2.13W/ft
≤37.8lm/W
IP40
50,000hrs
Homogenous
Product Details

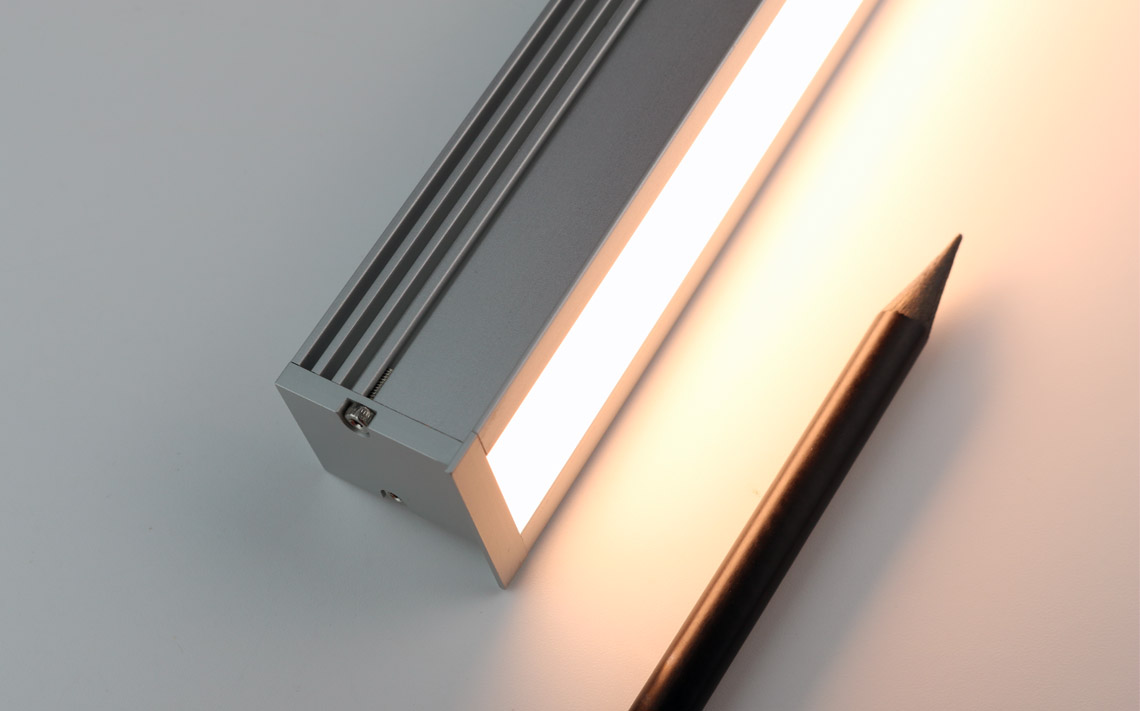

  • Recessed compact linear profile.
  • Snap-in diffused cover.
  • Spring mounting brackets.
  • Output up to 2000 lumens per metre.
  • s-line / k-line CCT: 1900K, 2100K, 2300K, 2500K, 2700K, 3000K, 3500K, 4000K, 5000K.
  • A-line CCT: 2700K, 3000K, 4000K.
  • LEDmix dynamic white.
  • RGB.
Unit: Metric Imperial
Product Data
Lumen/m Lumen/ft
Lumen/W
Lifetime/hrs
Diffused cover
s-line
265
81
37.8
50,000
k-line
250
76
35.7
50,000
All data based on 3000K

Downloads

Installation Guide
