LINI-S Glow

Accessories / Options | Downloads |

LINI-S Glow Projects

Select LED:

Unit: Metric Imperial

A030

30W/m9.14W/ft
≤2010lm/m (67lm/W)≤613lm/ft (67lm/W)

R209

25W/m7.62W/ft
Tunable whiteTunable white

RGBW

20W/m6.10W/ft
Dynamic colour changeDynamic colour change

LINI-S Glow A030

Homogeneous

L70 B10>50000h

ULlistingUS Pending

RoHS

LM79

LM80

TM-30 Results

Dispatched within 10 days of order

24V DC

30W/m

67lm/W

IP40

50,000hrs

24V DC

9.14W/ft

67lm/W

IP40

50,000hrs

Homogenous

Product Details

Small fully homogenous LED profile with snap-in diffuser.

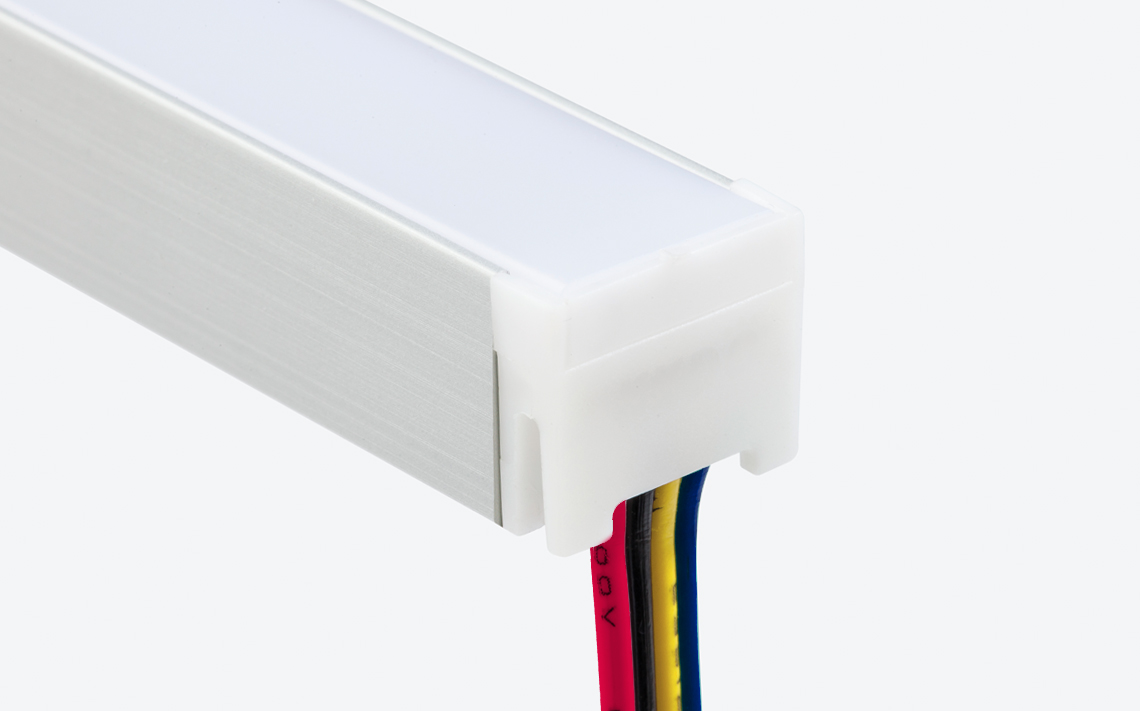

Glowing end caps with dual cable exit design.

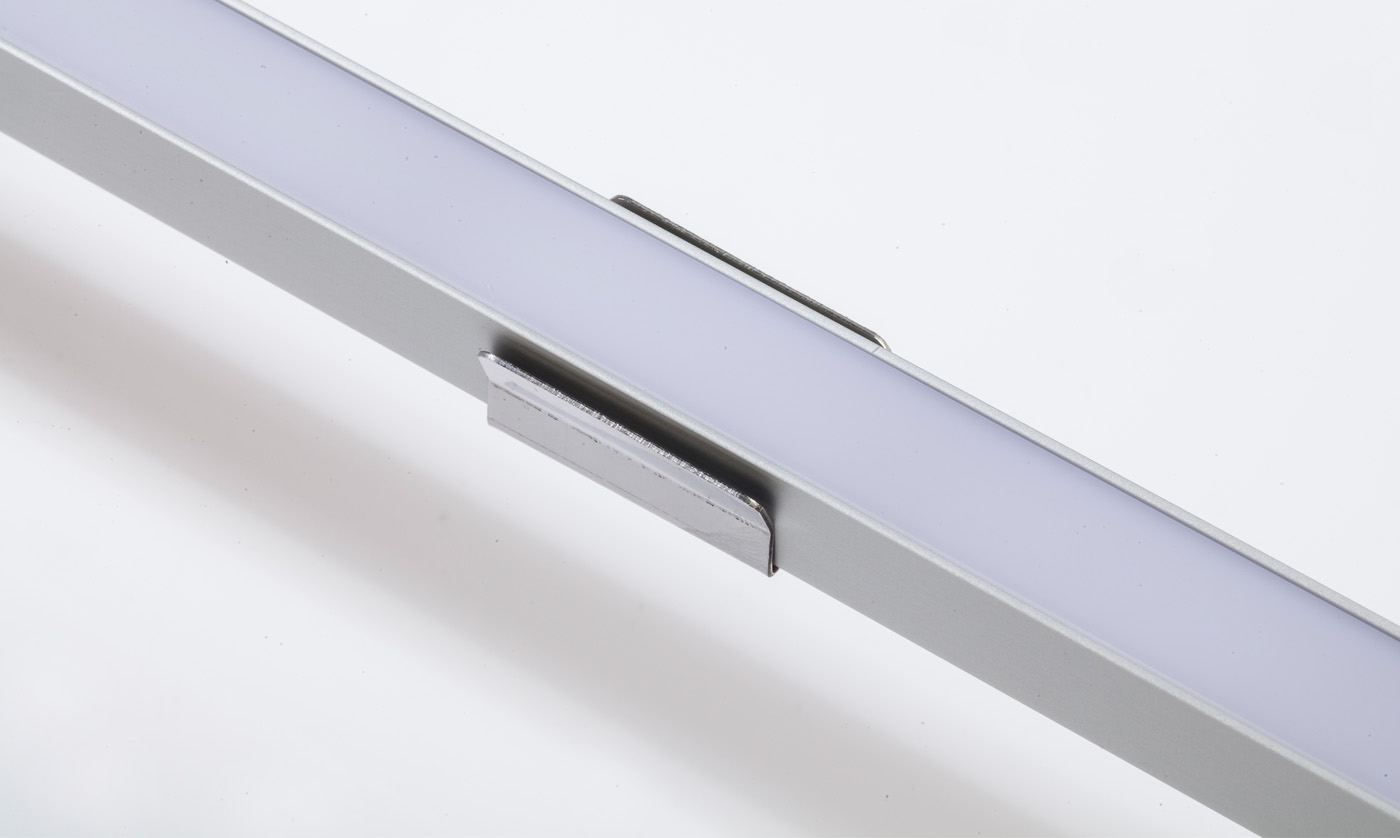

Surface mounted via clips or 3M tape.
Output up to 2010lm/m.
s-line / k-line CCT: 1900K, 2100K, 2300K, 2500K, 2700K, 3000K, 3500K, 4000K, 5000K.
LEDmix dynamic white.
LEDmix RGBW.

Unit: Metric Imperial

Product Data

Lumen/m Lumen/ft

Lumen/W

Lifetime/hrs

Diffused cover

A-line

2010

613

67

50,000

Accessories / Options

Downloads

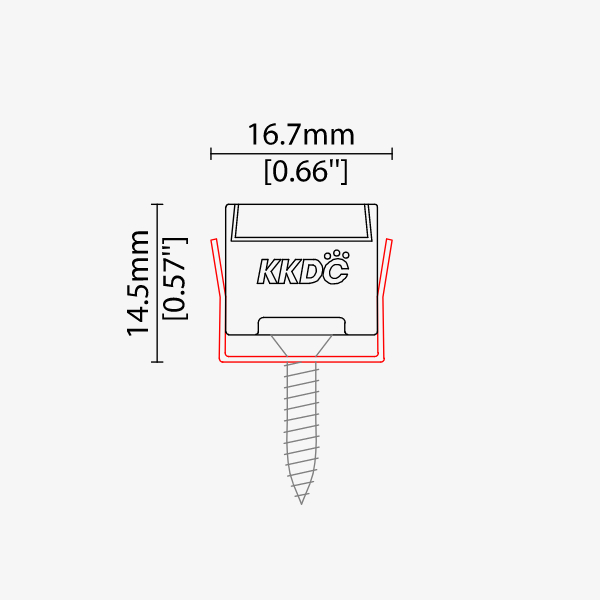

KKCP-02 (LiNi-S Glow)

Clip
Allow 3 per metre
Stainless steel finish
L25/W16.7/H15.5mm

Clip
Allow 3 per 40"
Stainless steel finish
L0.98/W0.66/H0.61"

Spec LINI-S Glow A030 Install LINI-S Glow A030

CAD LINI-S Glow A030 IES LINI-S Glow A030 LDT LINI-S Glow A030

Batch Download (.ZIP file)
