SEN CV

Accessories / Options | Downloads |

Select Product:

035 (Max output)

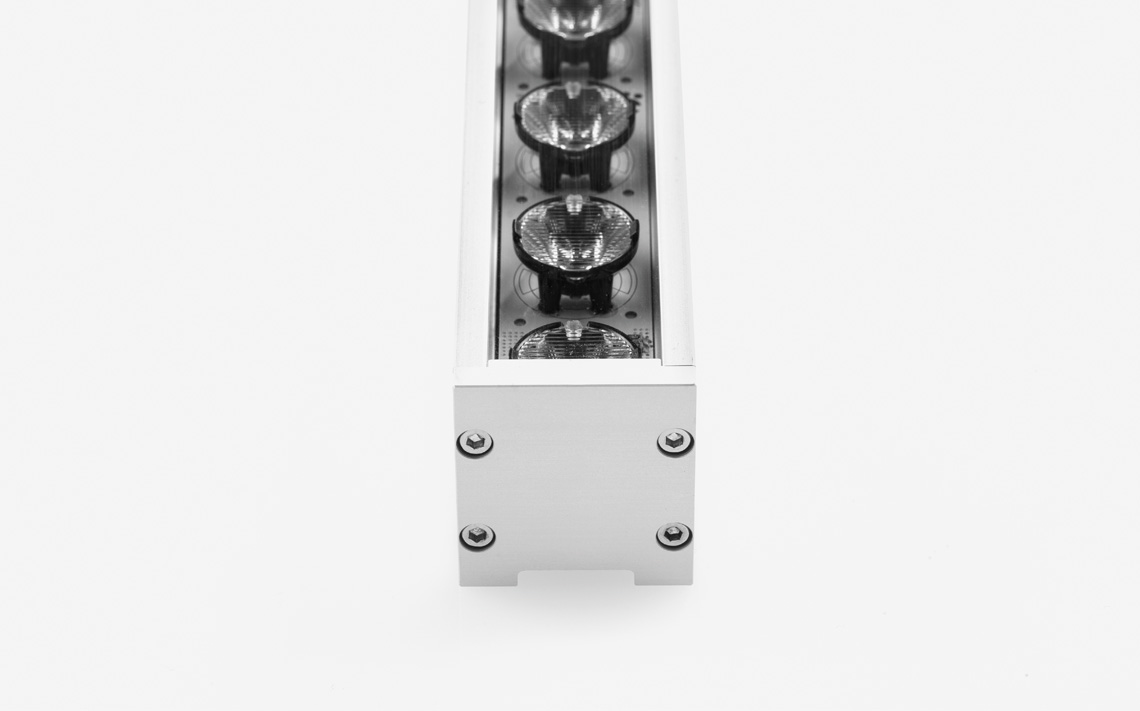

SEN CV 035

Interior

Exterior

ULlistingUS

h-line

LM79

LM80

L70 B10>50000h

24V DC

67.2W/m

≤53.1lm/W

IP54 / IP67

50,000hrs

24V DC

20.48W/ft

≤53.1lm/W

IP54 / IP67

50,000hrs

Product Details

Range of power outputs available depending on LED pitch
Various lengths, lens options and mounting accessories available
Consistent LED pitch array when positioned end-to-end for continuous runs
CCT: 2700K, 3000K, 3500K, 4000K, 5000K (90CRI for 2700K, 3000K)
RGB with Constant Voltage integral DMX receiver

Unit: Metric Imperial

Product Data

Lumen/mLumen/ft

Lumen/W

Lifetime/hrs

Clear cover 10°

h-line

3570

1088

53.1

50,000

Clear cover 20°

h-line

3540

1080

52.7

50,000

Clear cover 30°

h-line

3220

980

48.9

50,000

Clear cover + spread lens

h-line

3470

1057

51.6

50,000

Clear cover no lens

h-line

2860

873

42.6

50,000

Clear cover + micro louvre

h-line

-60% Output when combined with Cover and Lens options

All data based on 3000K

Accessories / Options

Downloads

KKBK-02 (SEN CV)

Fixed bracket
Allow 2 per metre
Steel finish
L40/W39.2/H68.8mm

Fixed bracket
Allow 2 per 40"
Steel finish
L1.58/W1.54/H2.71"

KKBK-09 (SEN CV)

Mounting plate
Allow 2 per metre – factory fitted
Silver anodised aluminium finish
W39.2/H52.3mm

Mounting plate
Allow 2 per 40" – factory fitted
Silver anodised aluminium finish
W1.54/H2.06"

KKBK-16 (SEN CV)

Small adjustable bracket
Allow 2 per metre
Silver anodised aluminium finish
L46/W70/H79.1mm

Small adjustable bracket
Allow 2 per 40"
Silver anodised aluminium finish
L1.8/W2.76/H3.11"

KKBK-17 (SEN CV)

Large adjustable bracket
Allow 2 per metre
Silver anodised aluminium finish
L46/W70/H129.4mm

Large adjustable bracket
Allow 2 per 40"
Silver anodised aluminium finish
L1.8/W2.76/H5.09"

KKBK-23 (SEN CV)

Low adjustable bracket
Allow 2 per metre
Silver anodised aluminium finish
L34/W39/H58.1mm

Low adjustable bracket
Allow 2 per 40"
Silver anodised aluminium finish
L1.34/W1.54/H2.29"

KKCP-12 (SEN CV)

Lock clip
Allow 2 per metre
Stainless steel finish
L38/W40.5/H70mm

Lock clip
Allow 2 per 40"
Stainless steel finish
L1.5/W1.59/H2.76"

RC-Rear cable exit
(SEN CV)

Not compatible with low profile bracket (KKBK-23) or mounting plate (KKBK-09)
H56.9mm

Not compatible with low profile bracket (KKBK-23) or mounting plate (KKBK-09)
H2.24"

SC-Side cable exit
(SEN CV)

Required for use of low adjustable bracket (KKBK-23)
W56.4mm

Required for use of low adjustable bracket (KKBK-23)
W2.22"
