KOH 40-S

Accessories / Options | Downloads |

Videos

KOH 40-S Projects

Select LED:

Unit: Metric Imperial

High CRI

17.5W17.5W
≤1170lm/560mm module
(67lm/W)≤1170lm/560mm module
(67lm/W)

High power

33.5W33.5W
≤2190lm/560mm module
(65.2lm/W)≤2190lm/560mm module
(65.2lm/W)

KOH 40-S High power

100-240V AC

33.5W

≤65.2lm/W

IP40

50,000hrs

100-240V AC

33.5W

≤65.2lm/W

IP40

50,000hrs

Homogenous

Product Details

Surface-mounted linear lighting system for general lighting with 40mm width aperture.
Fully diffused, prismatic or dark light louvre cover options available.
Choice of 2 LED package types with integral power supply (Switched/1-10V/DALI).
Continuous lines of light possible with optional joining bars and suspension kit.
k-line CCT: 1900K, 2100K, 2200K, 2300K, 2500K, 2700K, 3000K, 3500K, 4000K, 5000K.
h-line CCT: 2200K, 2700K,3000K, 3500K, 4000K, 5000K.

Unit: Metric Imperial

Product Data

Lumen/m Lumen/ft

Lumen/W

Lifetime/hrs

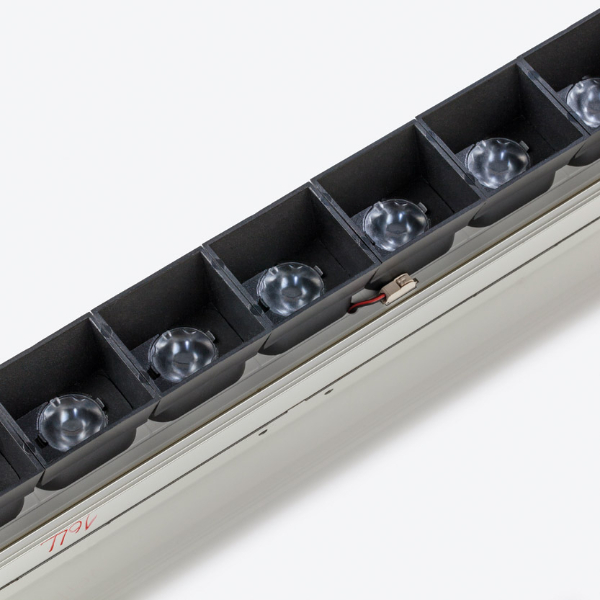

Louvre + 10° lens

High Power

2190lm / 560mm

65.2

50,000

Louvre + 20° lens

High Power

2150lm / 560mm

64.1

50,000

Louvre + 30° lens

High Power

1890lm / 560mm

56.4

50,000

Louvre + spread lens

High Power

810lm / 560mm

24.1

50,000

Louvre + frosted cover

High Power

870lm / 560mm

50,000

All data based on 3000K

Accessories / Options

Downloads

KKSW-07 (KOH 40-S)

Suspension Mounting Kit
Allow 2 per metre
Aluminium finish
W37.5/H≤3000mm

Suspension Mounting Kit
Allow 2 per 40"
Aluminium finish
W1.48/H118.11"

KKJT-03 (KOH 40-S)

Joining Bar
Allow 1 per join
L120/W42.8/H84.5mm

Joining Bar
Allow 1 per join
L4.72/W1.68/H3.33"

Spec KOH 40-S High power Install KOH 40-S High power

CAD KOH 40-S High power BIM KOH 40-S High power IES KOH 40-S High power LDT KOH 40-S High power

Batch Download (.ZIP file)
