LINI Blade-S

Accessories / Options    |    Downloads    |    Videos
LINI Blade-S Projects

Select LED:

Unit: Metric Imperial
R007
7W/m2.13W/ft
≤475lm/m (68lm/W)≤145lm/m (68lm/W)
Homogeneouss-linek-line
R014
14W/m4.27W/ft
≤965lm/m (69lm/W)≤294lm/ft (69lm/W)
Homogeneouss-linek-line
R020
20W/m6.10W/ft
≤912lm/m (46lm/W)≤278lm/ft (46lm/W)
Homogeneouss-linek-line
R207
16W/m4.88W/ft
Variable whiteVariable white
Homogeneouss-linek-lineLEDmix
RGB
15.6W/m4.75W/ft
Colour changeColour change
HomogeneousRGB

LINI Blade-S R020

InteriorHomogeneouss-linek-lineL70 B10>50000hULlistingUS 356145CEClass IIIRoHSLM79LM80TM-30 Results
24V DC
20W/m
≤46lm/W
IP40
50,000hrs
24V DC
6.10W/ft
≤46lm/W
IP40
50,000hrs
Homogenous
Product Details

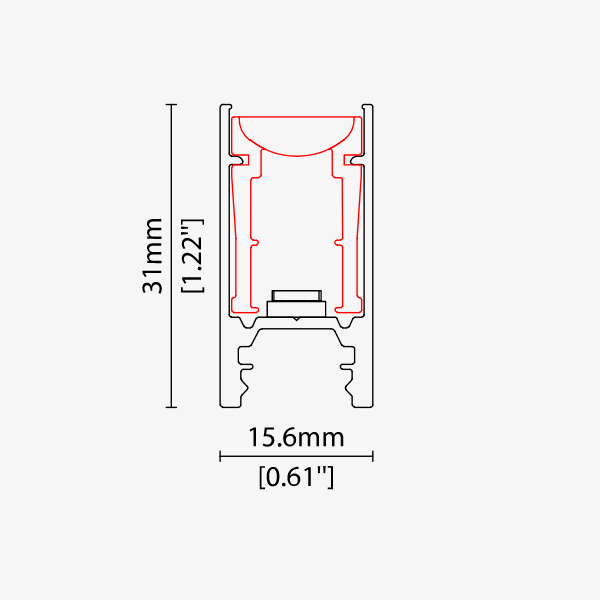

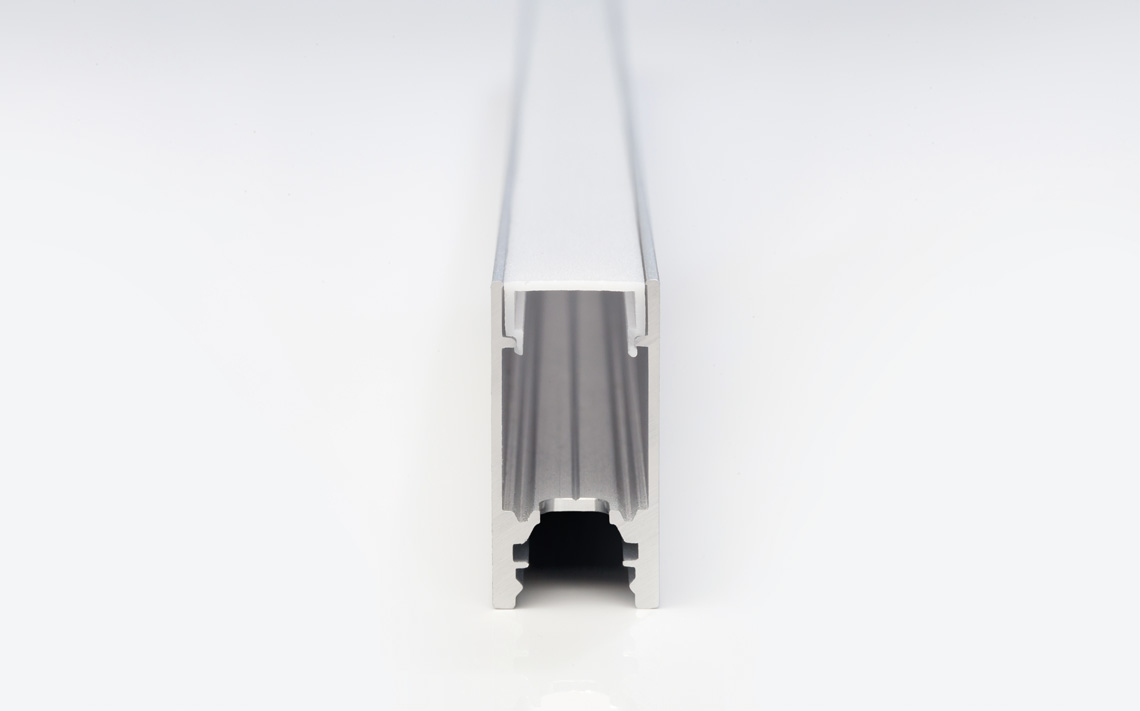

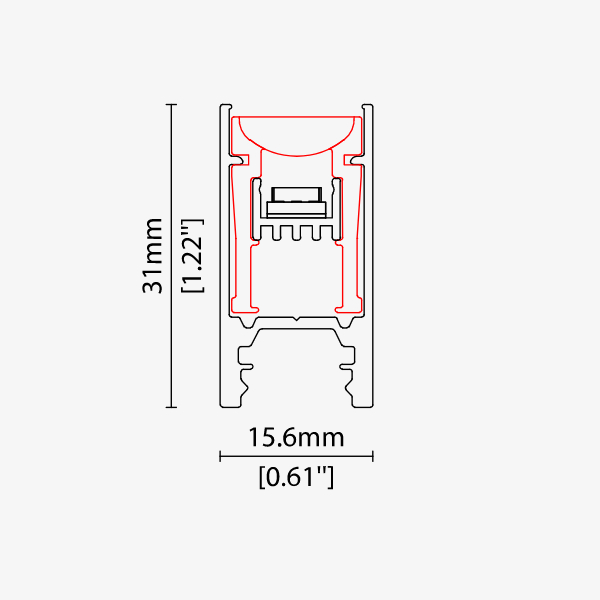

  • Compact, slim extruded aluminium housing with aluminium end caps.
  • Fully diffused snap-in diffuser or lens options.

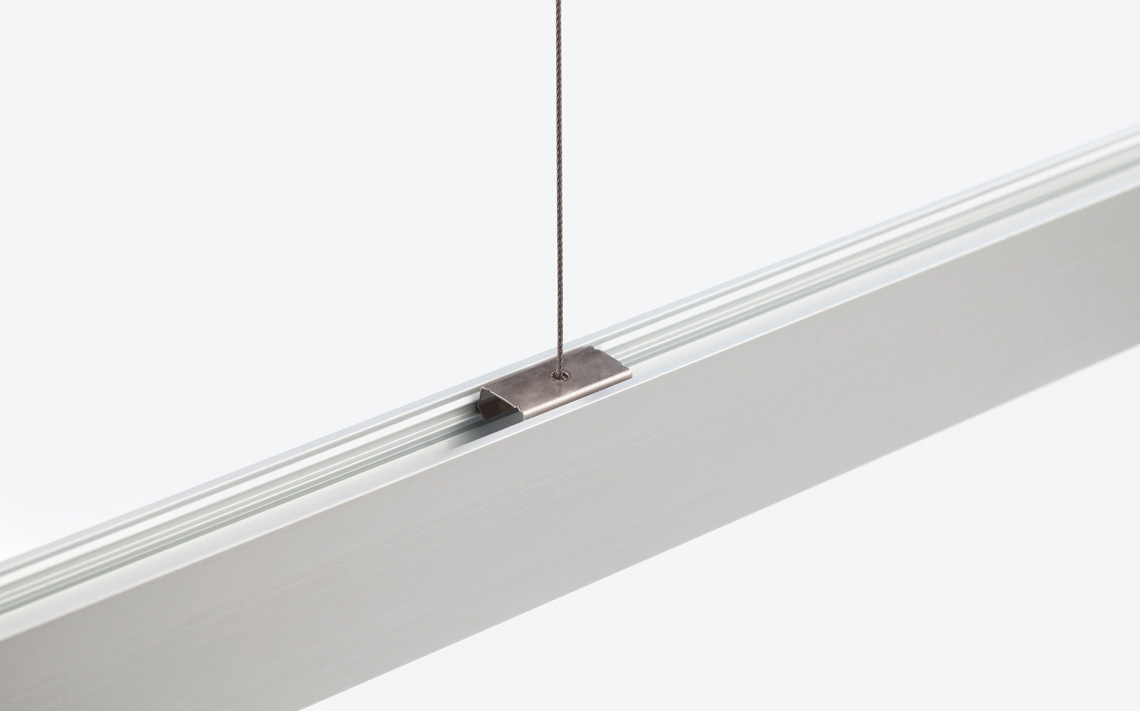

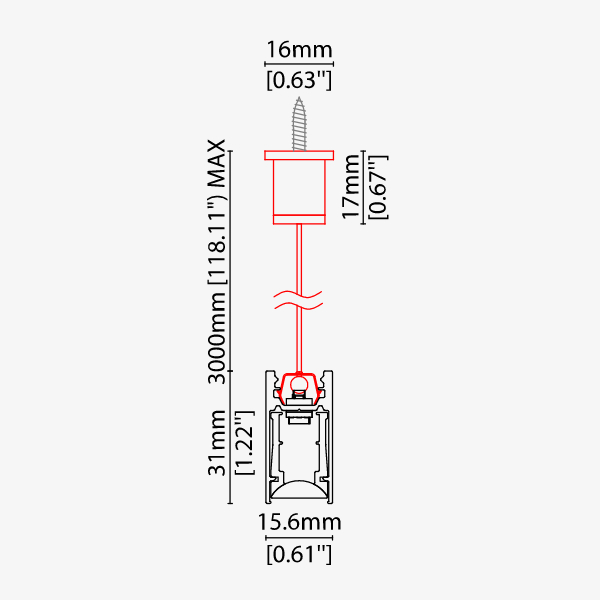

  • Concealed surface mounting clip or suspension kit.
  • Output up to 965 lumens per metre.
  • s-line / k-line CCT: 1900K, 2100K, 2300K, 2500K, 2700K, 3000K, 3500K, 4000K, 5000K.
  • LEDmix Dynamic white.
  • RGB.
Unit: Metric Imperial
Product Data
Lumen/m Lumen/ft
Lumen/W
Lifetime/hrs
Diffused cover
s-line
424
129
21
50,000
k-line
400
122
20
50,000
KKLN-01 15°
s-line
912
278
46
50,000
k-line
860
262
43
50,000

All data based on 3000K
