LINI Glow XL

Select LED:

Unit: Metric Imperial

LINI Glow XL R020

InteriorHomogeneouss-linek-lineL70 B10>50000hUL ListedCEClass IIIRoHSLM79LM80TM-30 Results
24V DC
20W/m
≤57lm/W
IP40
50,000hrs
24V DC
6.10W/ft
≤57lm/W
IP40
50,000hrs
Homogenous
Product Details
  • Compact linear housing with side emitting u-shaped diffuser.

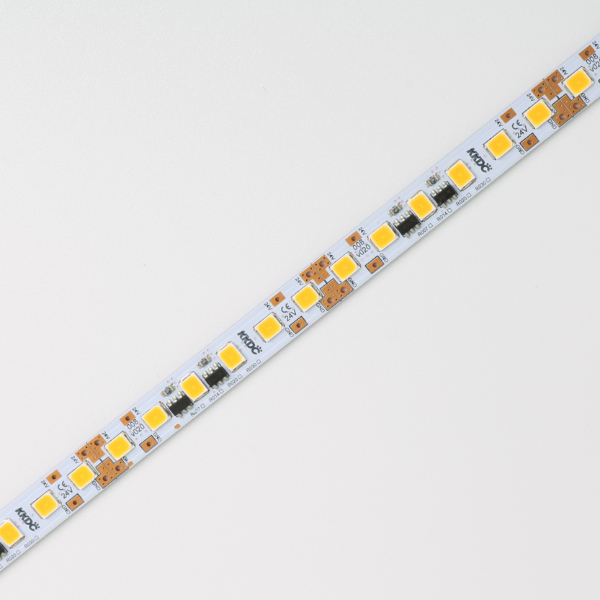

  • Wide range of LED strip type variants.
  • Surface mounting via concealed clip or cable raceway channel.
  • Output up to 2680 lumen per metre.
  • s-line / k-line CCT: 1900K, 2100K, 2300K, 2500K, 2700K, 3000K, 3500K, 4000K, 5000K.
  • A-line CCT: 2700K, 3000K, 4000K.
  • LEDmix dynamic white.
  • RGBW.
  • RGB.
Unit: Metric Imperial
Product Data
Lumen/m Lumen/ft
Lumen/W
Lifetime/hrs
Diffused cover
s-line
1145
349
57
50,000
k-line
1080
329
54
50,000
All data based on 3000K

Accessories / Options

Downloads

Installation Guide
