MOMO-R
Accessories / Options
|
Downloads |
Videos
MOMO-R Projects
Select LED:
Unit:
Metric
Imperial
New
R007
7W/m
2.13W/ft
≤563lm/m (80.5lm/W)
≤172lm/ft (80.5lm/W)
New
R014
14W/m
4.27W/ft
≤1152lm/m (82.3lm/W)
≤351lm/ft (82.3lm/W)
New
R020
20W/m
6.10W/ft
≤1632lm/m (81.6lm/W)
≤498lm/ft (81.6lm/W)
New
R030
30W/m
9.14W/ft
≤2309lm/m (77lm/W)
≤704lm/ft (77lm/W)
New
A040
40W/m
2.13W/ft
≤3668lm/m (91.7lm/W)
≤1118lm/ft (91.7lm/W)
New
R207
16W/m
4.88W/ft
Tunable white
Tunable white
New
RGBW
20W/m
6.10W/ft
Dynamic colour change
Dynamic colour change
RGB
15.6W/m
4.75W/ft
Colour change
Colour change
MOMO-R R007
24V DC
7W/m
≤80.5lm/W
IP44 / IP67
50,000hrs
24V DC
2.13W/ft
≤80.5lm/W
IP44 / IP67
50,000hrs
Homogenous
New
Product Details

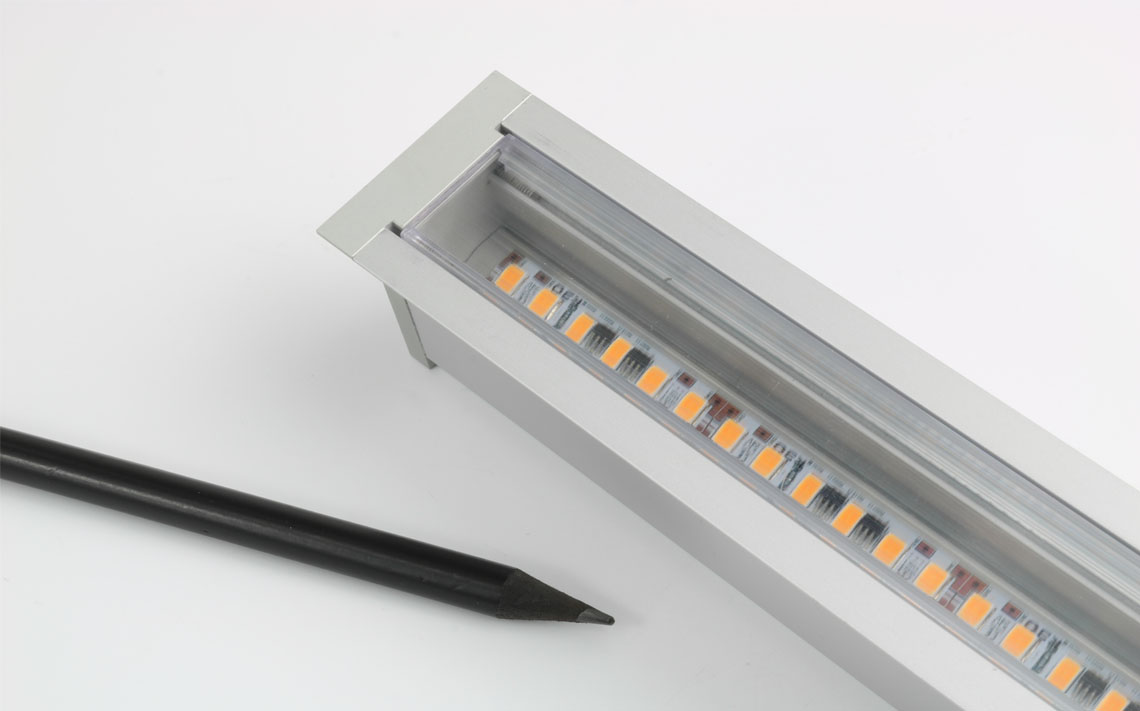

Recessed compact profile with wide range of LED strip types suitable for interior or exterior use.
Clear or diffused covers with wide range of lens and louvre options available.
Recessed mounting via spring clips.
IP44 or IP67 ratings available.
Output up to 3668 lumens per metre.
s-line / k-line CCT: 1900K, 2100K, 2300K, 2500K, 2700K, 3000K, 3500K, 4000K, 5000K.
A-line CCT: 2700K, 3000K, 4000K.
LEDmix dynamic white.
RGBW.
RGB.
Unit:
Metric
Imperial
Product Data
Lumen
/m
Lumen
/ft
Lumen
/W
Lifetime
/hrs
Asymmetric lens
s-line
562
171
80.3
50,000
k-line
531
162
75.8
50,000
Clear cover
s-line
563
172
80.5
50,000
k-line
531
162
75.9
50,000
Diffused cover
s-line
254
77
36.3
50,000
k-line
239
73
34.2
50,000
Micro louvre + clear
s-line
288
41.1
88
50,000
k-line
272
38.8
83
50,000
KKLN-01 18° + clear cover
s-line
313
95
44.7
50,000
k-line
295
90
42.2
50,000
KKLN-01 18° + micro louvre
+ clear cover
s-line
139
43
19.9
50,000
k-line
132
43
18.8
50,000
Clear Cover + KKLN-03 23°
s-line
325
99
46.4
50,000
k-line
307
93
43.8
50,000
Clear Cover + KKLN-03 23° + Micro Louvre
s-line
185
56
26.4
50,000
k-line
174
53
24.9
50,000
All data based on 3000K
Accessories / Options
Downloads
KKCR-01 Cable Raceway (MOMO-R)
KKCR-01-1000 1000mm
KKCR-01-2000 2000mm
KKCR-01-3000 3000mm
Cable raceway (Cut & drilled to fit on site)
Anodised aluminium finish
W22/H36.4mm
KKCR-01-1000 39.37in
KKCR-01-2000 78.74in
KKCR-01-3000 118.11in
Cable raceway (Cut & drilled to fit on site)
Anodised aluminium finish
W0.87/H1.43"
KKSB-01 (MOMO-R)
Spring bracket
Allow 2 per metre
Anodised aluminium finish
L31/W35.4/H45.2mm
Spring bracket
Allow 2 per 40"
Anodised aluminium finish
L1.22/W1.39/H1.78''
A - Clear Cover + KKLN-03 (MOMO-R)
Clear Cover
23º beam angle lens (KKLN-03)
AK - Clear Cover + KKLN-03 + Micro louvre (MOMO-R)
Clear Cover
23º beam angle lens (KKLN-03)
Micro louvre
B - Clear Cover (MOMO-R)
Clear PC Cover
Clear PC Cover
BA2 - Clear Cover + KKLN-A2 (MOMO-R)
Clear Cover
Asymmetric lens (KKLN-A2)
C - Diffused Cover (MOMO-R)
Diffused PC cover
Diffused PC cover
K - Clear Cover + Micro louvre (MOMO-R)
Clear Cover
Micro louvre
P - Clear Cover + 14° KKLN-01 (MOMO-R)
Clear PC Cover
14° beam angle lens
Clear PC Cover
14° beam angle lens
U - Clear Cover + KKLN-01 + Micro louvre (MOMO-R)
