SEN CC

Accessories / Options    |    Downloads    |    Videos
SEN CC Projects

Select LED:

Unit: Metric Imperial
100
10W/m / 20W/m3.04W/ft / 6.4W/ft
≤1974lm/m (94lm/W)≤602lm/ft (94lm/W)
Spottingh-line
050
20W/m / 41W/m6.09W/ft / 12.49W/ft
≤3813lm/m (93lm/W)≤1162lm/ft (93lm/W)
Spottingh-line
033
30W/m / 61W/m9.14W/ft / 18.59W/ft
≤5673lm/m (106lm/W)≤1729lm/ft (106lm/W)
Spottingh-line

SEN CC 050

InteriorExteriorh-lineL70 B10>50000hULlistingUS 356145CEPSECCCFMMLM80TM-30 ResultsIK10 tested
350mA / 700mA
20W/m / 41W/m
≤105lm/W / 93lm/W
IP44 / IP67
50,000hrs
350mA / 700mA
6.09W/ft / 12.49W/ft
≤105lm/W / 93lm/W
IP44 / IP67
50,000hrs
Product Details

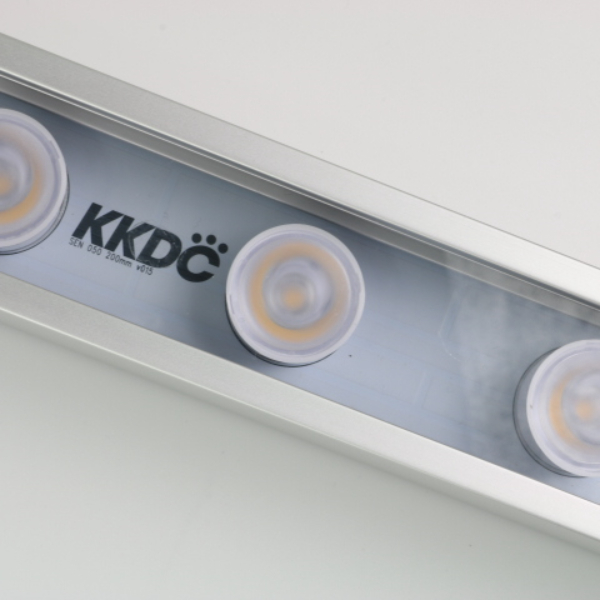

  • Powerful, continuous linear illumination for exterior façades, wall washing and other architectural applications.
  • 3 power outputs with varying LED arrays (Pitches: 33mm / 50mm / 100mm).
  • Many surface mounted fixing accessories available.
  • Constant Current (CC) remote driven Cree LED with many lens and control options for white.
  • Output up to 5673 lumens per metre.
  • h-line CCT: 2700K, 3000K, 3500K, 4000K, 5000K.
Unit: Metric Imperial
Product Data
Lumen/m Lumen/ft
Lumen/W
Lifetime/hrs
10° lens (350mA)
h-line
1960
597
98
50,000
10° lens (700mA)
h-line
3567
1087
87
50,000
20° lens (350mA)
h-line
1960
597
98
50,000
20° lens (700mA)
h-line
3526
1075
86
50,000
30° lens (350mA)
h-line
1820
555
91
50,000
30° lens (700mA)
h-line
3280
1000
80
50,000
60° lens (350mA)
h-line
2100
640
105
50,000
60° lens (700mA)
h-line
3813
1162
93
50,000
Spread lens (350mA)
h-line
1900
579
95
50,000
Spread lens (700mA)
h-line
3444
1050
84
50,000
No lens (350mA)
h-line
1580
482
79
50,000
No lens (700mA)
h-line
2829
862
69
50,000
Clear cover + micro louvre
h-line
-60% output
-60% output

All data based on 3000K
