SEN Louvre CV

Accessories / Options | Downloads |

SEN Louvre CV Projects

Select LED:

Unit: Metric Imperial

035

40W/m12.19W/ft
≤2644lm/m (66lm/W)≤806lm/ft (66lm/W)

047 RGBW

58W/m17.68W/ft
Dynamic colour changeDynamic colour change

SEN Louvre CV 047 RGBW

Interior

Exterior

RGBW

h-line

L70 B10>50000h

Class III

RoHS

LM79

LM80

TM-30 Results

IK10 tested

24V DC

58W/m

≤48lm/W

IP44/67

50,000

24V DC

17.68W/ft

≤48lm/W

IP44/67

50,000

New

Product Details

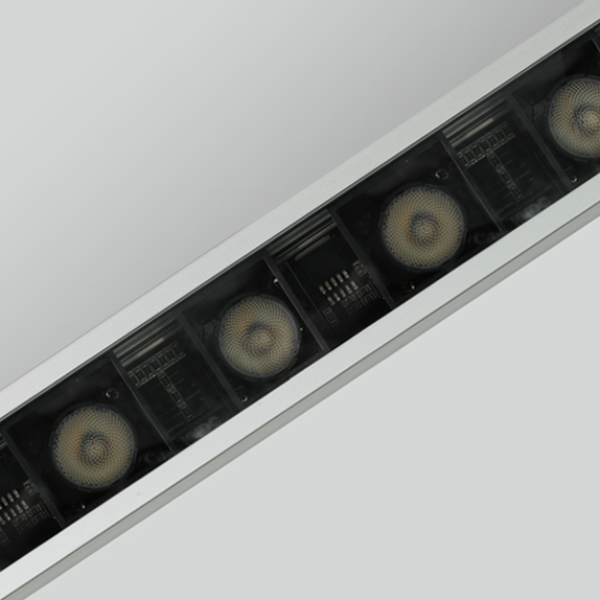

Deep louvred large linear fixture with 35mm pitched high power lensed LED for exterior use.
Clear cover with lens options and deep anti-glare louvre.
Mounting via lock clips or adjustable brackets.
IP44 or IP67 ratings available.
Output up to 2938 lumens per metre.
h-line CCT: 2700K, 3000K, 3500K, 4000K, 5000K.
RGBW.

Unit: Metric Imperial

Product Data

Lumen/m Lumen/ft

Lumen/W

Lifetime/hrs

Clear cover 15°

h-line

2784

849

47

50,000

Clear cover 25°

h-line

2668

813

45

50,000

All data based on 3000K

Accessories / Options

Downloads

KKBK-02 (SEN Louvre CV)

Fixed bracket
Allow 2 per metre
Steel finish
W39.2/H87.1mm

Fixed bracket
Allow 2 per 40"
Steel finish
W1.54/H3.43"

KKBK-09 (SEN Louvre CV)

Mounting plate
Allow 2 per metre – factory fitted
Silver anodised aluminium finish
W39.2/H70.6mm

Mounting plate
Allow 2 per 40" – factory fitted
Silver anodised aluminium finish
W1.54/H2.78"

KKBK-16 (SEN Louvre CV)

Small adjustable bracket
Allow 2 per metre
Silver anodised aluminium finish
W70/H97.4mm

Small adjustable bracket
Allow 2 per 40"
Silver anodised aluminium finish
W2.76/H3.83"

KKBK-17 (SEN Louvre CV)

Large adjustable bracket
Allow 2 per metre
Silver anodised aluminium finish
W70/H147.7mm

Large adjustable bracket
Allow 2 per 40"
Silver anodised aluminium finish
W2.76/H5.81"

KKBK-23 (SEN Louvre CV)

Low adjustable bracket
Allow 2 per metre
Silver anodised aluminium finish
L34/W39.2/H76.4mm

Low adjustable bracket
Allow 2 per metre/40"
Silver anodised aluminium finish
L1.34/W1.54/H3.00"

KKSW-05 (SEN Louvre CV)

Quick release suspension wire kit
W19.1/H≤3000mm

Quick release suspension wire kit
W0.75/H≤118.11"

RC SEN Louvre CV)

Not compatible with low profile bracket (KKBK-23) or mounting plate (KKBK-09)
H75.2mm

Not compatible with low profile bracket (KKBK-23) or mounting plate (KKBK-09)
H2.96"

SC (SEN Louvre CV)

Required for use of low adjustable bracket (KKBK-23)
W56.4mm

Required for use of low adjustable bracket (KKBK-23)
W2.22"

Spec SEN Louvre CV 047 RGBW Install SEN Louvre CV 047 RGBW CE Certificate SEN Louvre CV 047 RGBW

CAD SEN Louvre CV 047 RGBW

Batch Download (.ZIP file)
