TIMI Projects

Select LED:

Unit: Metric Imperial
R007
7W/m2.13W/ft
≤680lm/m (97lm/W)≤207lm/m (97lm/W)
Semi-homogenouss-linek-line
R014
14W/m4.27W/ft
≤1380lm/m (99lm/W)≤421lm/ft (99lm/W)
Semi-homogenouss-linek-line
A010
10W/m3.05W/ft
≤1400lm/m (140lm/W)≤426lm/ft (140lm/W)
HomogeneousA-line
A020
20W/m6.1W/ft
≤2800lm/m (140lm/W)≤853lm/m (140lm/W)
HomogeneousA-line
R207
16W/m4.88W/ft
Variable whiteVariable white
Spottings-linek-lineLEDmix
RGB
15.6W/m4.75W/ft
Colour changeColour change
SpottingRGB

TIMI A010

InteriorHomogeneousA-lineL70 B10>50000hUL ListedCEClass IIIRoHSLM79LM80TM-30 Results
24V DC
10W/m
≤140lm/W
IP20
50,000hrs
24V DC
3.05W/ft
≤140lm/W
IP20
50,000hrs
Homogenous
Product Details

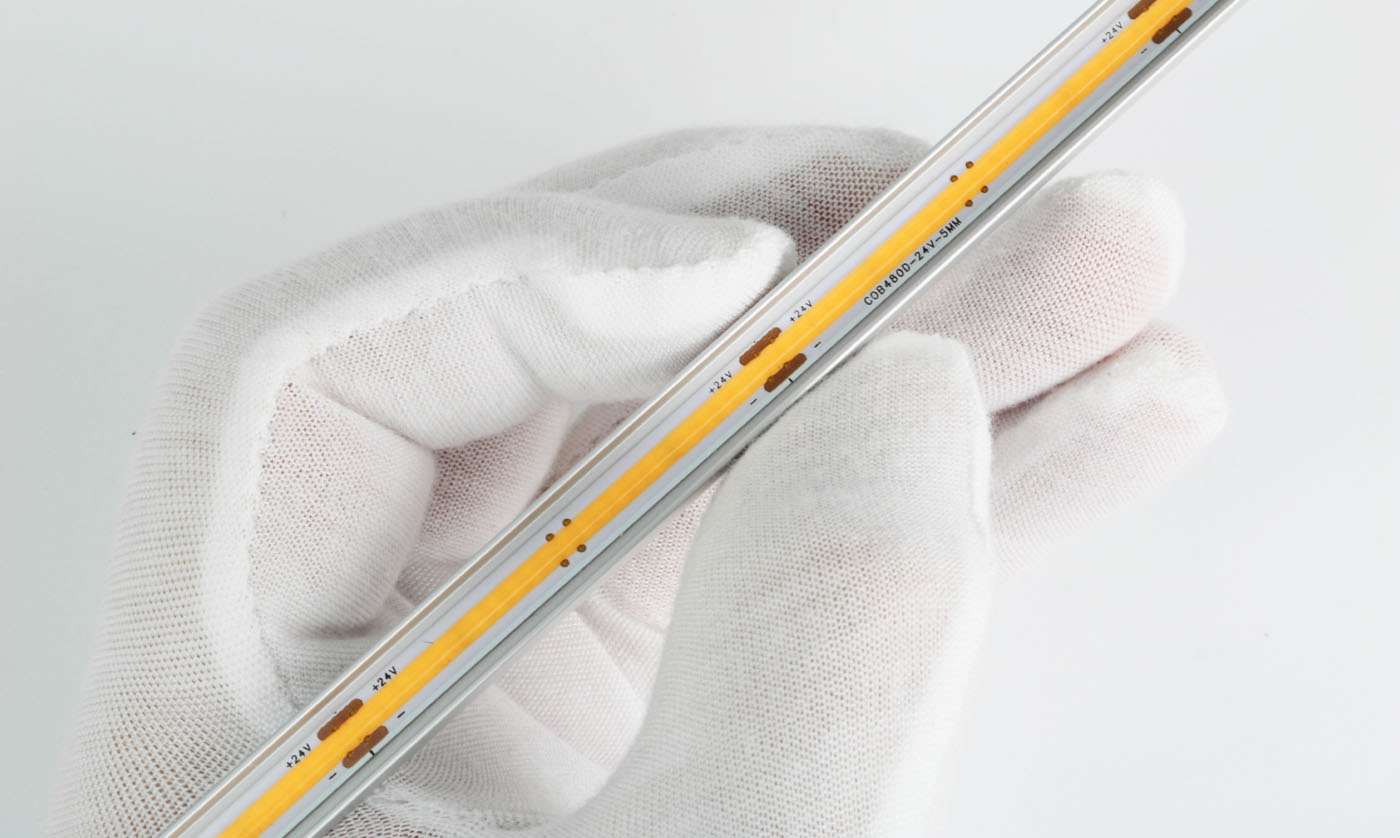

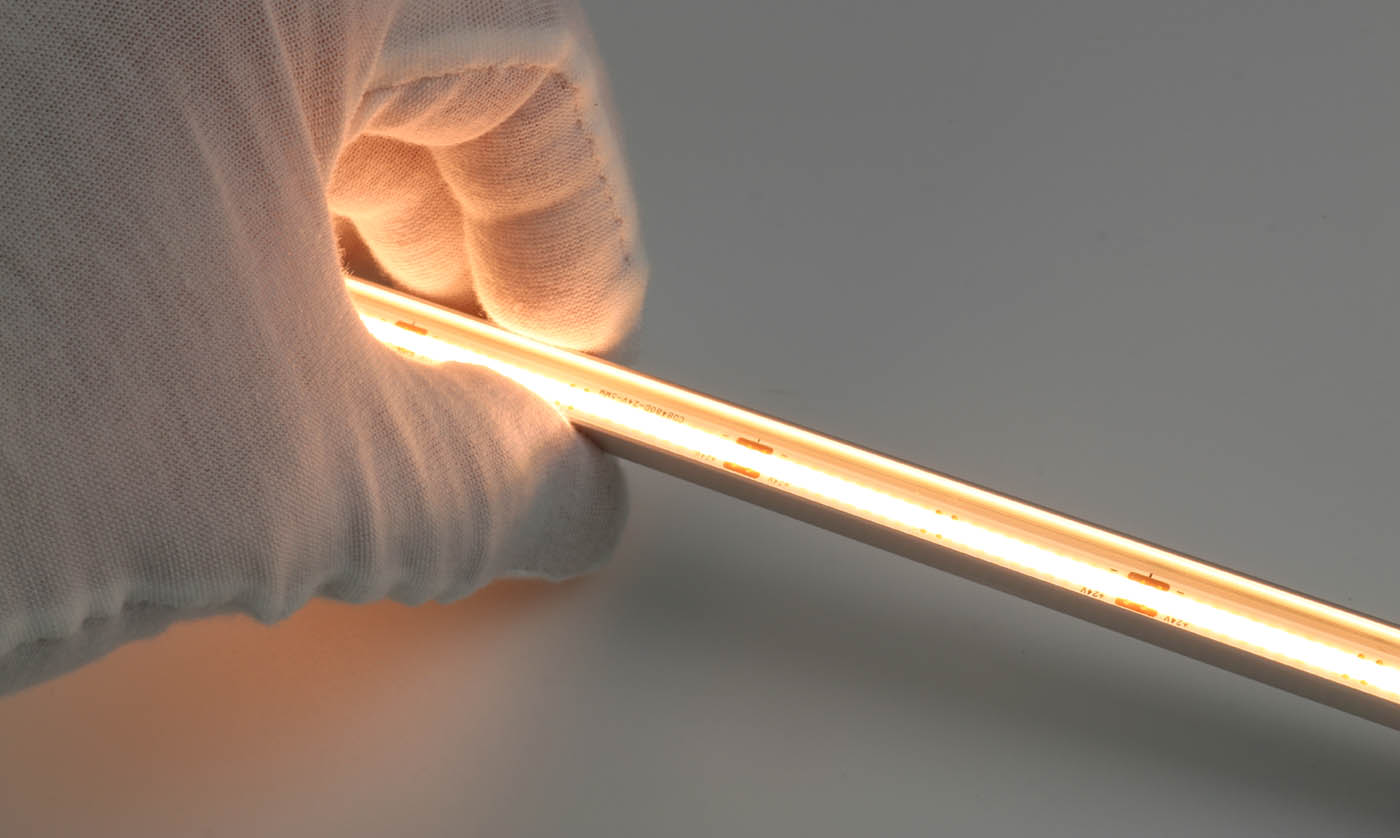

  • Mini aluminium profile with wide range of LED options for integration into architectural details.

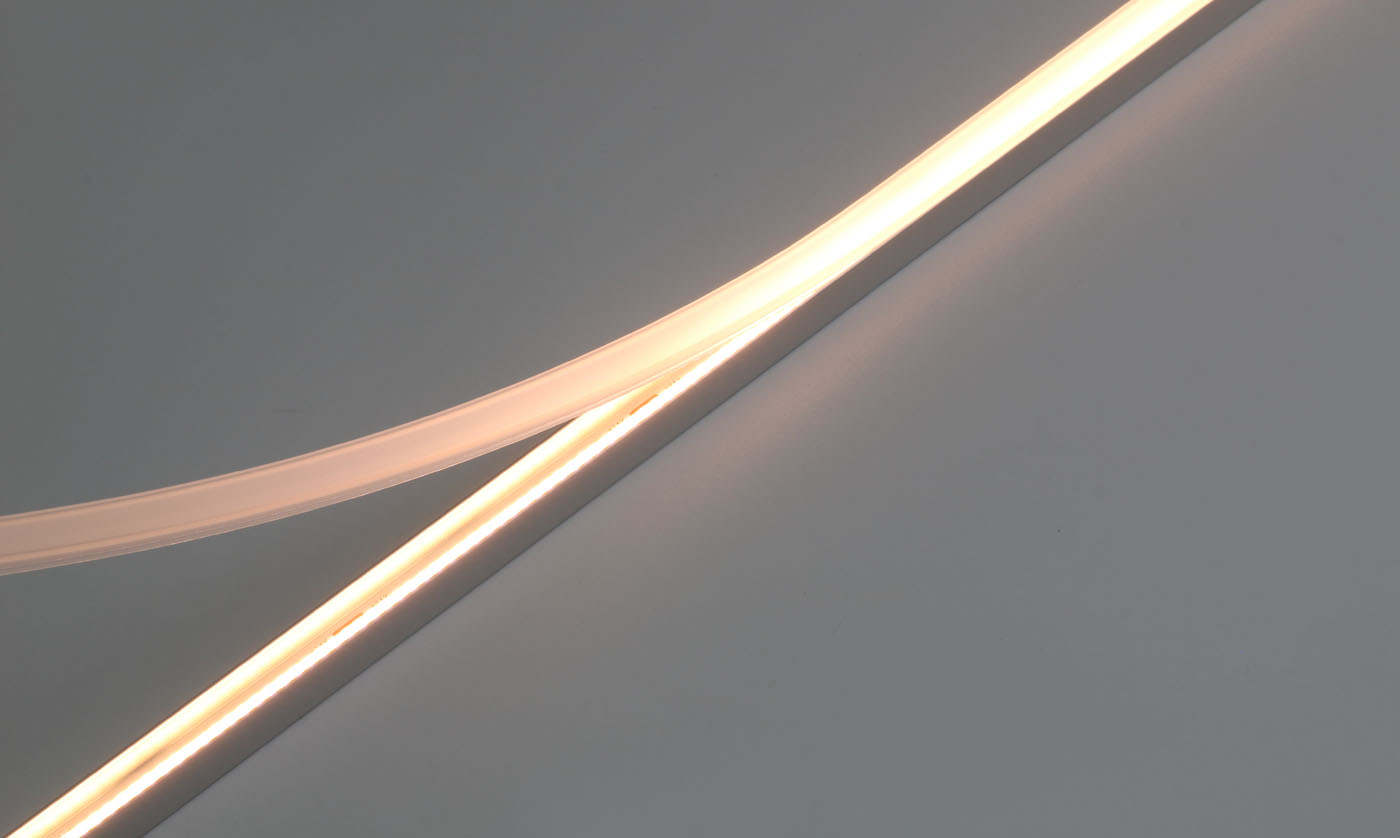

  • Snap-fit cover options or lens accessory.
  • Clip mounting.
  • Output up to 2800 lumens max per metre.
  • s-line / k-line CCT: 1900K, 2100K, 2300K, 2500K, 2700K, 3000K, 3500K, 4000K, 5000K.
  • A-line CCT: 2700K, 3000K, 4000K.
  • LEDmix dynamic white.
  • RGB.
Unit: Metric Imperial
Product Data
Lumen/m Lumen/ft
Lumen/W
Lifetime/hrs
No cover
A-line
1400
426
140
50,000
Semi-diffused
A-line
1200
365
120
50,000
KKLN-01 14°
A-line
1232
376
123
50,000
KKLN-01 36°
A-line
1300
396
130
50,000
All data based on 3000K
