TIMI

Accessories / Options    |    Downloads    |    Videos
TIMI Projects

Select LED:

Unit: Metric Imperial
New
C010
10W/m3.05W/ft
≤640lm/m (64lm/W)≤195lm/ft (64lm/W)
c-line Homogenousc-line
R007
7W/m2.13W/ft
≤637lm/m (91lm/W)≤194lm/m (91lm/W)
Semi-homogenousk-line
R014
14W/m4.27W/ft
≤1302lm/m (93lm/W)≤397lm/ft (93lm/W)
Semi-homogenousk-line
A010
10W/m3.05W/ft
≤1400lm/m (140lm/W)≤426lm/ft (140lm/W)
HomogenousA-linevisDIM PRO 30
A020
20W/m6.1W/ft
≤2800lm/m (140lm/W)≤853lm/m (140lm/W)
HomogenousA-linevisDIM PRO 30
AP20
20W/m6.1W/ft
≤3320lm/m (166lm/W)≤1012lm/ft (166lm/W)
HomogenousA-line PLUSvisDIM PRO 30
AM15 (CC)
15W/m4.6W/ft
≤2865lm/m (191lm/W)≤873lm/ft (191lm/W)
HomogenousA-line MAX
R207
16W/m4.88W/ft
Variable whiteVariable white
Spottingk-lineLEDmix
RGB
15.6W/m4.75W/ft
Colour changeColour change
SpottingRGB
CHROMAX RGB
20W/m6.10W/ft
Colour changeColour change
SpottingCHROMAX RGB

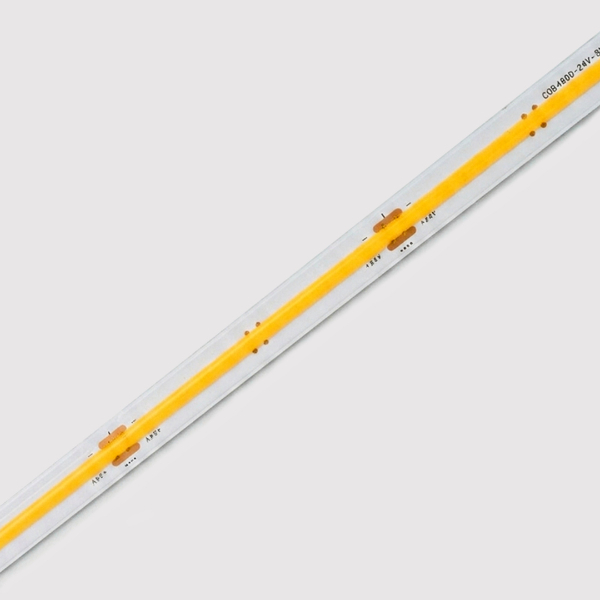

TIMI C010

Interiorc-line Homogenousc-lineL70 B10>30000hCELM79TM-30 Results
24V DC
10W/m
≤64lm/W
IP20/IP40
30,000hrs
24V DC
3.05W/ft
≤64lm/W
IP20/IP40
30,000hrs
Homogenous
New
Product Details
  • Mini aluminium profile with wide range of LED options for integration into architectural details.
  • Snap-fit cover options or lens accessory.
  • Clip mounting.
  • Output up to 3320 lumens max per metre.
  • k-line CCT: 1900K, 2100K, 2300K, 2500K, 2700K, 3000K, 3500K, 4000K, 5000K.
  • c-line (COB) CCT: 1900K, 2100K, 2300K, 2500K, 2700K, 3000K, 3500K, 4000K.
  • A-line CCT: 2700K, 3000K, 3500K, 4000K.
  • A-line PLUS / A-line MAX CCT: 2700K, 3000K, 3500K, 4000K, 5000K.
  • LEDmix dynamic white.
  • RGB.
  • CHROMAX RGB.
Unit: Metric Imperial
Product Data
Lumen/m Lumen/ft
Lumen/W
Lifetime/hrs
No cover
c-line
640
195
64
30,000
Semi-diffused
c-line
537
164
54
30,000
KKLN-01 14°
c-line
594
181
59
30,000
KKLN-01 36°
c-line
585
178
59
30,000
Black Cover
c-line
177
54
18
30,000
